Lightning signal receiver RSMS01B

Mobile UHF lightning mapping station based on an antenna array. The device is essential tool for lightning research. The array could either be stationary or mobile, mounted on the car roof. The receiver is able to record an radio waveform of lightning before of trigger signal.

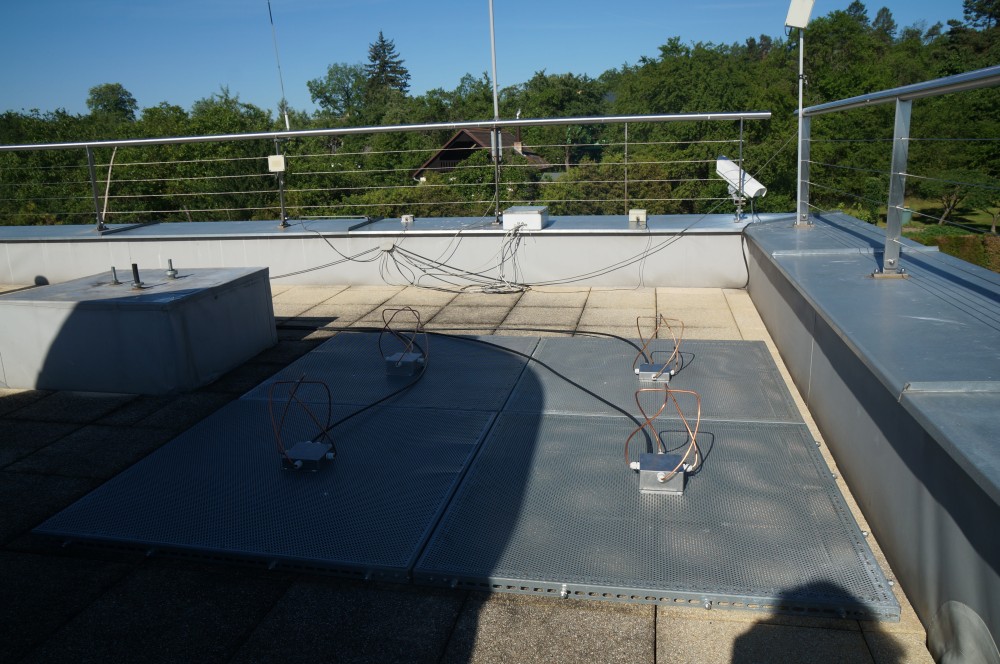

Stationary antenna array

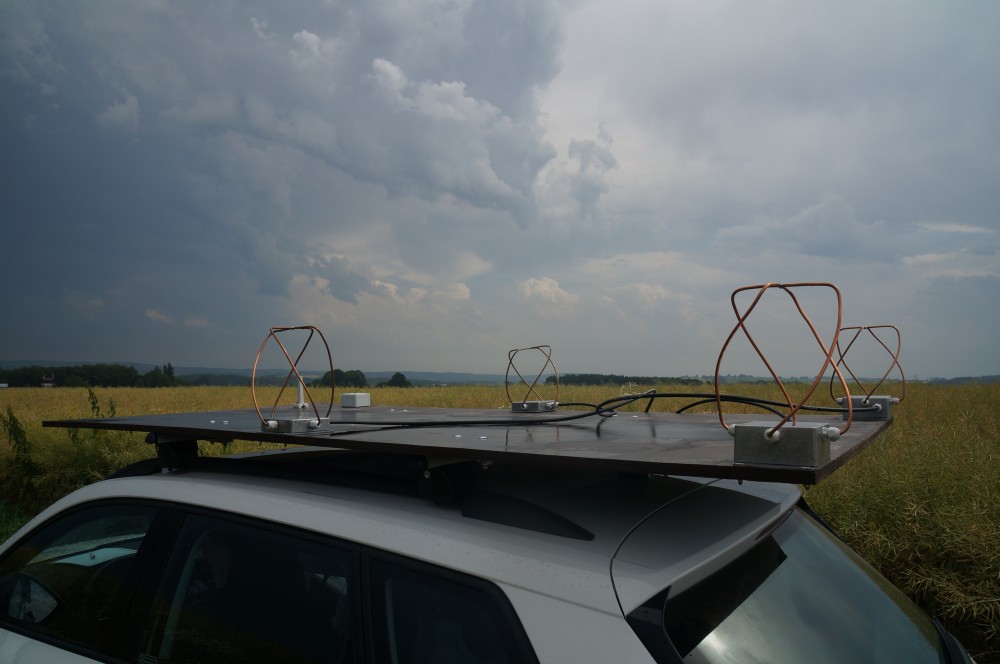

Mobile antenna array

Block Schematics

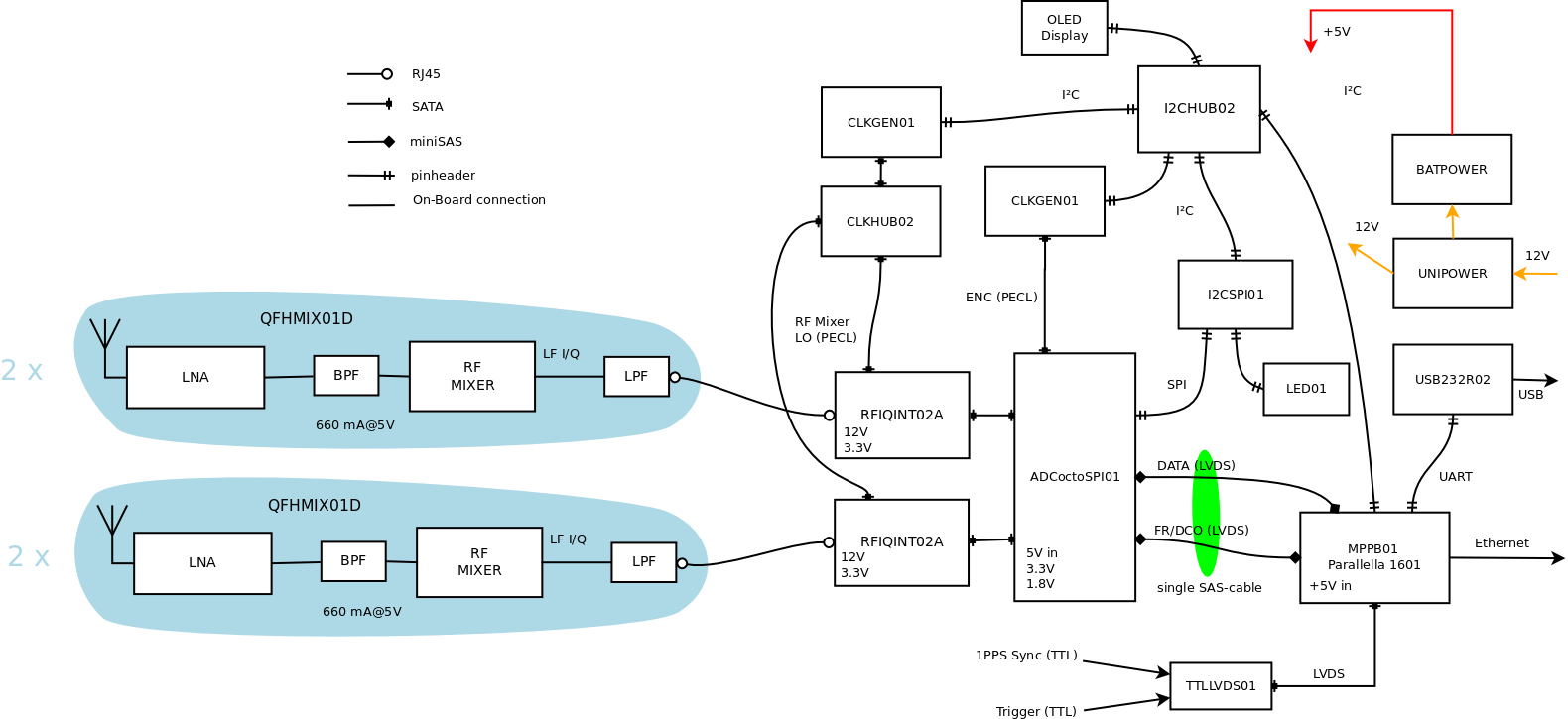

Station block schematics


The device uses fosphor for real-time spectral visualization.

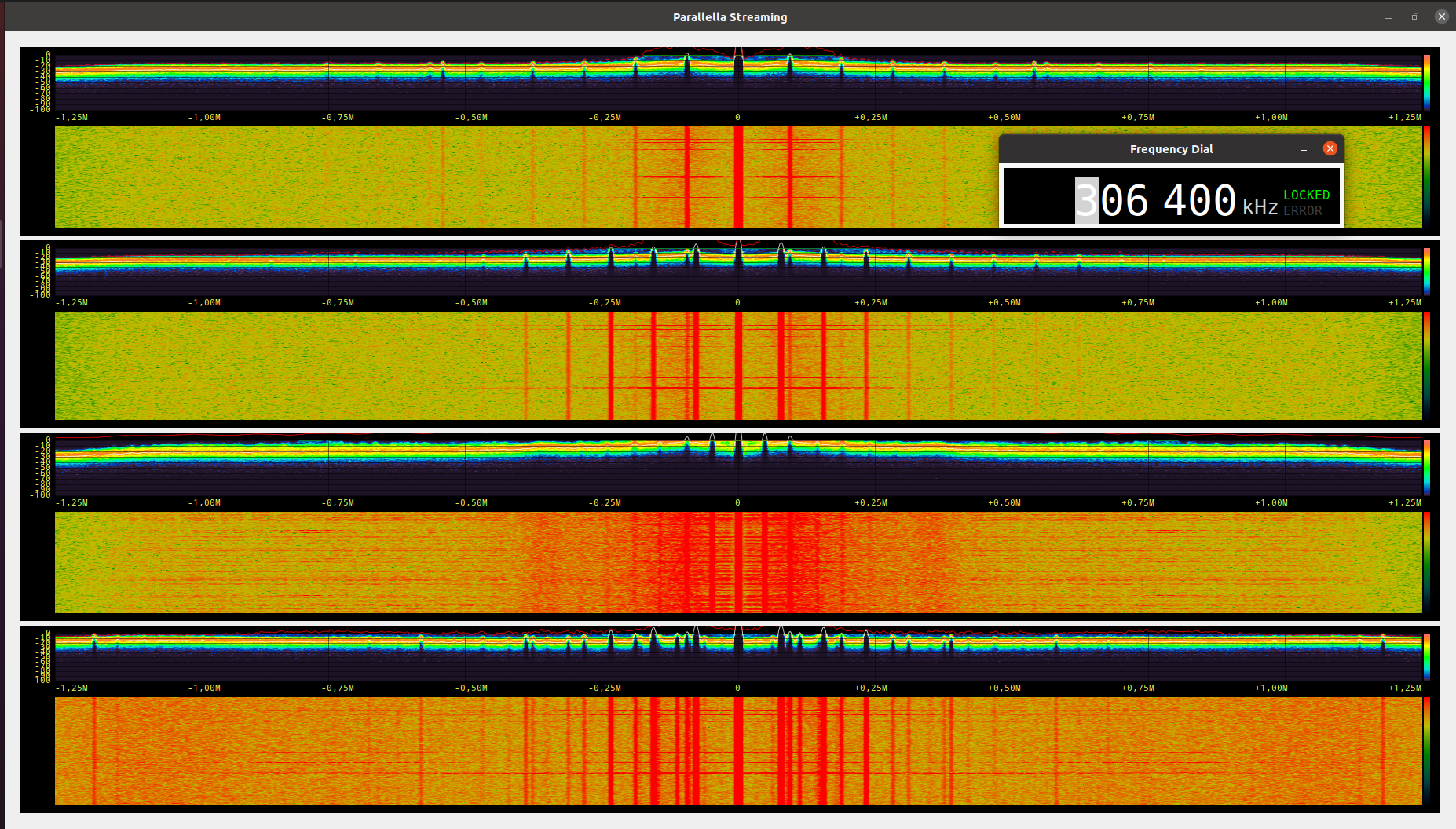

Fosphor waterfall for antenna array
